Understanding Types of Cracks in Buildings and How BPT Provides Solutions

Understanding Types of Cracks in Buildings and How BPT Provides Solutions

Cracks in buildings are not just surface blemishes – they are signs of deeper issues that may compromise safety, durability, and aesthetics if left untreated. Recognizing the type of crack and its cause is the first step toward effective repair. At BPT Group, through our expertise in diagnosis, analysis, and specialized solutions, we ensure that every crack is addressed scientifically and sustainably.

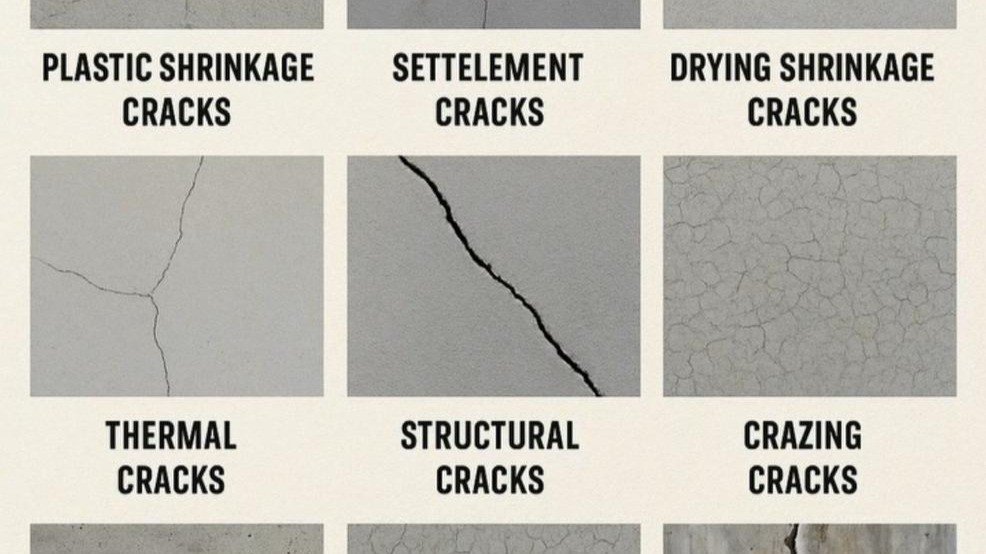

Below are the common types of cracks and how we help:

1. Plastic Shrinkage Cracks



  • Description: These occur when fresh concrete loses water rapidly during the initial setting stage, leading to surface cracks. They are often visible as random shallow cracks.
  • BPT Solution: We conduct on-site diagnosis, identify improper curing or mix design issues, and recommend surface sealing, curing compounds, or polymer-modified overlays to restore durability.



2. Settlement Cracks



  • Description: Caused by uneven settlement of the foundation or soil beneath the structure. These cracks usually appear near weaker sections like joints or openings.
  • BPT Solution: Our team uses NDT (Non-Destructive Testing), geotechnical assessments, and structural evaluation to determine settlement extent. We then provide grouting, underpinning, and structural strengthening solutions for long-term stability.



3. Drying Shrinkage Cracks



  • Description: These form due to volume reduction when moisture evaporates from hardened concrete over time.
  • BPT Solution: BPT conducts moisture mapping and material analysis to assess the depth of shrinkage. We apply shrinkage-reducing admixtures, micro-crack sealers, and joint design improvements to mitigate recurrence.



4. Thermal Cracks



  • Description: Caused by temperature variations leading to expansion and contraction of concrete. Common in exposed structural members.
  • BPT Solution: Our experts use infrared thermography and stress analysis to map thermal stresses. We recommend expansion joints, fiber reinforcement, and protective coatings (like Sunbless) to manage thermal movements.



5. Structural Cracks



  • Description: Major cracks that affect load-bearing elements such as beams, columns, or slabs, often caused by design errors, excessive load, or deterioration.
  • BPT Solution: With structural engineers and advanced diagnostic tools, we identify severity and propose epoxy injection, FRP (Fiber Reinforced Polymer) wrapping, jacketing, or full-scale retrofitting for structural integrity.



6. Crazing Cracks



  • Description: Fine, shallow, map-like cracks that appear on plaster or concrete surfaces due to rapid surface drying.
  • BPT Solution: We apply surface treatments, resin coatings, and proper curing practices to prevent recurrence while restoring aesthetics.



7. Corrosion Cracks



  • Description: Result from reinforcement steel corrosion, causing expansion and cracking of surrounding concrete.
  • BPT Solution: Our half-cell potential tests and chloride ion penetration analysis identify corrosion activity. Solutions include electrochemical treatments, rebar protection coatings, and polymer-modified repair mortars to extend lifespan.



8. ASR (Alkali-Silica Reaction) Cracks



  • Description: These are chemical reaction-induced cracks between alkaline cement paste and reactive silica in aggregates, leading to expansion and cracking.
  • BPT Solution: We perform petrographic analysis and lab testing to confirm ASR. Mitigation includes low-alkali materials, lithium-based admixtures, and sealing treatments to prevent moisture ingress.



9. Overloading Cracks



  • Description: Formed when the structure is subjected to loads beyond its designed capacity – commonly seen in industrial floors, slabs, or retrofitted buildings.
  • BPT Solution: We use load tests and finite element analysis to assess residual strength. Remedial measures include structural strengthening with FRP, steel plate bonding, or additional support systems.



BPT Advantage – From Detection to Protection

At BPT Group, we believe cracks are not just flaws – they are warnings. Our approach combines: ✅ Diagnosis – Advanced NDT, thermal imaging, moisture meters, structural audits ✅ Analysis – Root cause identification with scientific methods ✅ Solutions – Sustainable, eco-friendly, and tailor-made repair systems

By blending engineering expertise, modern technology, and eco-conscious materials, BPT ensures that cracks are not only repaired but prevented from recurring.

Conclusion

Every crack tells a story – of stress, neglect, or natural forces. With the right expertise, they can be managed before they turn into disasters. At BPT Group, our mission is to restore strength, safety, and confidence in every structure we touch.
